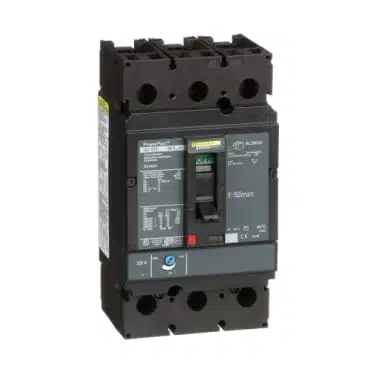

JDL36225 - Square D Circuit Breakers

MOLDED CASE CIRCUIT

1 in stock

New, in stock and ready to ship

RUSH Shipping Available

Limited Warranty

JDL36225 Overview

The Square D JDL36225 is a molded case circuit breaker engineered for reliable protection and control of electrical systems. Specifically designed for use in commercial and industrial power distribution networks, this breaker features a frame size of 250A with an integrated thermal-magnetic mechanism ensuring precise operation. The unit operates at a voltage rating of up to 600V and has an interrupting rating of 25 kAIC at 480V, which accommodates a range of application requirements. Its fixed trip setting ensures consistent performance, crucial for systems requiring robust electrical safety and efficiency. Ideal for panelboard mounting, the JDL36225 is commonly employed in HVAC, refrigeration, and lighting, as well as conveyor systems, providing effective fault protection and circuit isolation.

Additional Information

Additional information

Manufacturer	SQUARE D
UPC	78590162317
Product Group	Circuit Breakers
Category	Circuit Breakers
Family	Powerpact
Type class	JDL
VOLTAGE	600
AMPERAGE	225
Phase	3
Functions	LI – Long-Time and Instantaneous
POLES	3
Protection	Thermal Magnetic
Connection	I-Line Style Plug-In
Sub category	Molded Case
Condition	New
Aic rating	18kA@480V

Product Description

MOLDED CASE CIRCUIT
